| Chipset |
Intel H470 |
| CPU Support |
Socket 1200 – hỗ trợ Intel Core™ 10th / 11th Gen, Pentium, Celeron |
| Memory |
2 x DDR4 DIMM, Dual Channel, hỗ trợ DDR4 1866–3200MHz, tối đa 64GB, non-ECC (4/8/16/32GB) |
| Integrated Video |
Tùy theo CPU, hỗ trợ DX12, HDCP |
| Storage |
4 x SATA III (6Gb/s), hỗ trợ AHCI, RAID 0/1/5/10, Intel RST 1 x M.2 (2242/2260/2280), PCIe 3.0 x4 (32Gb/s) & SATA III |
| LAN |
Realtek RTL8111H, 10/100/1000 Mbps, Half/Full duplex |
| Audio |
Realtek ALC897, 7.1 kênh HD Audio |
| USB |
4 x USB 3.2 Gen1 (2 rear, 2 header) 4 x USB 2.0 (2 rear, 2 header) |
| Expansion Slot |
1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x1 |

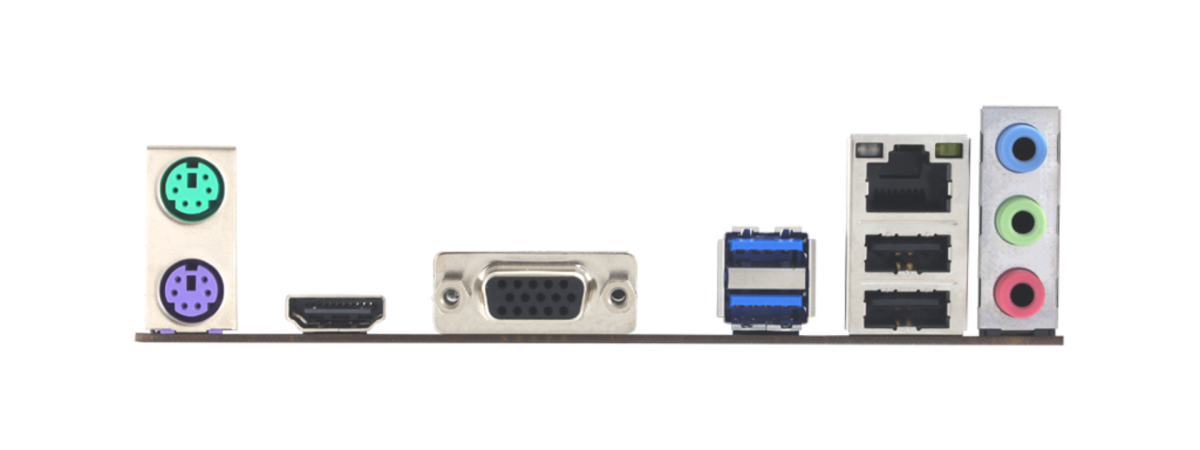

| Rear I/O |
1 x PS/2 KB, 1 x PS/2 Mouse 1 x HDMI, 1 x VGA 2 x USB 3.2 Gen1, 2 x USB 2.0 1 x LAN, 3 x Audio Jack |
| Internal I/O |
4 x SATA III 1 x USB 3.2 Gen1 header (2 cổng) 1 x USB 2.0 header (2 cổng) 8-pin + 24-pin Power 1 x CPU Fan, 1 x System Fan Front Panel, Front Audio, Clear CMOS, COM, TPM, CIO |
| Monitoring |
CPU/System Temp, Fan Monitoring, Smart/Manual Fan Control, CPU/DDR Voltage |
| Kích thước |
Micro-ATX, 18.5 x 23.5 cm |
| OS Support |
Windows 10/11 (64-bit) |
| Phụ kiện kèm |
2 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide |
