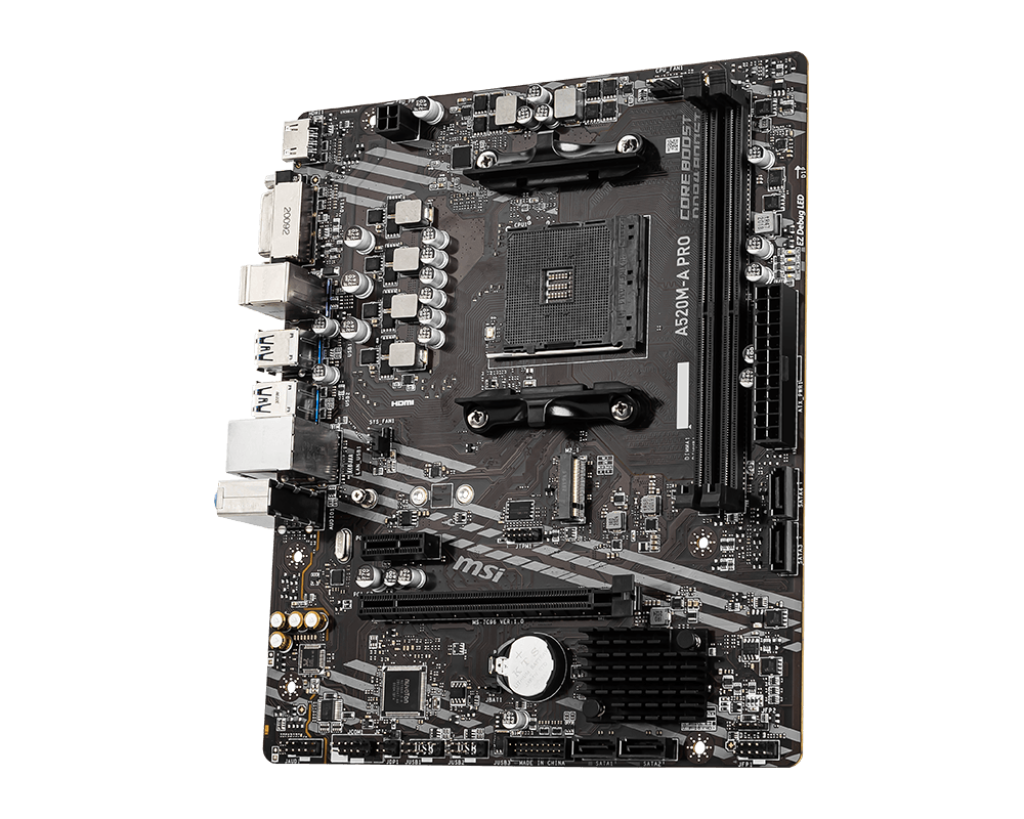

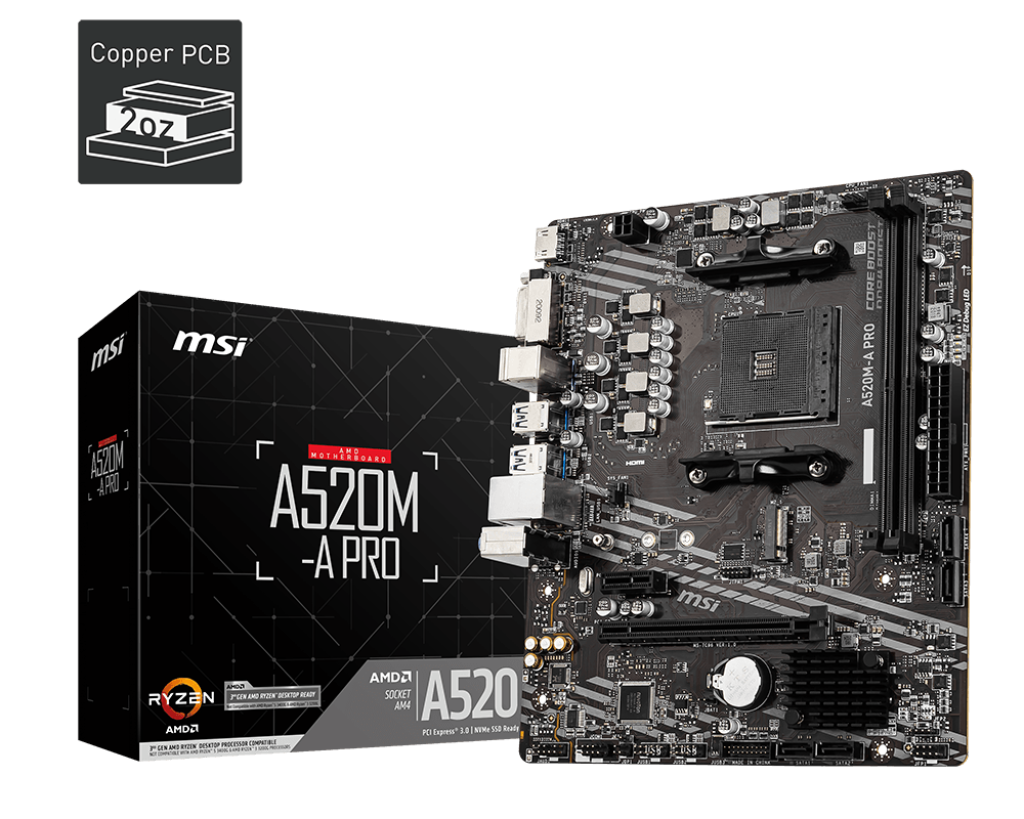

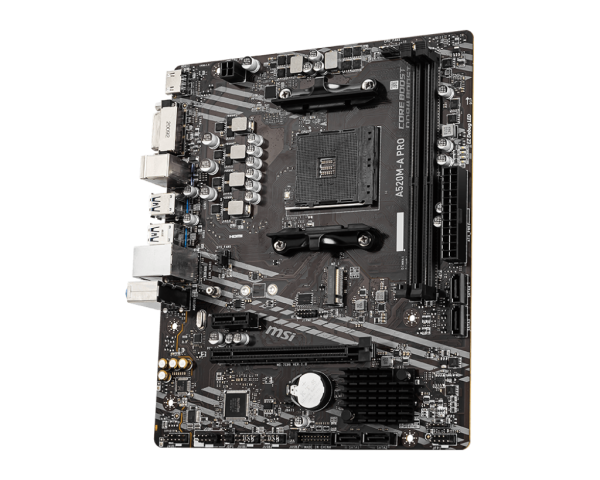

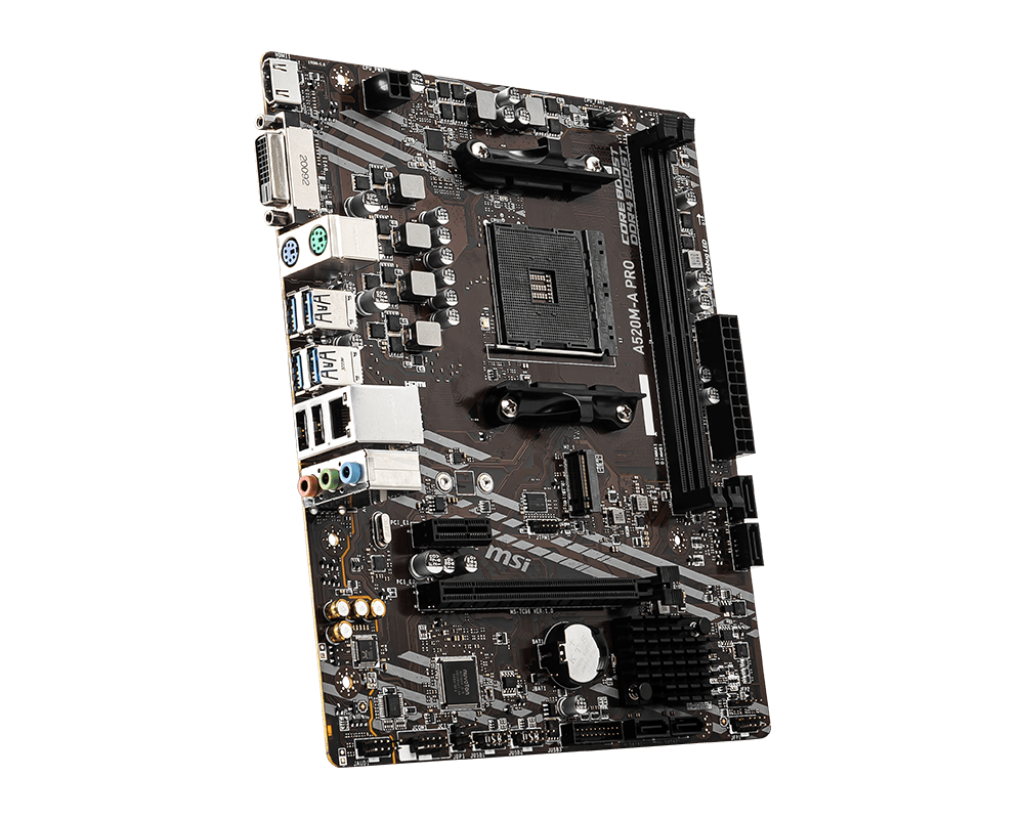

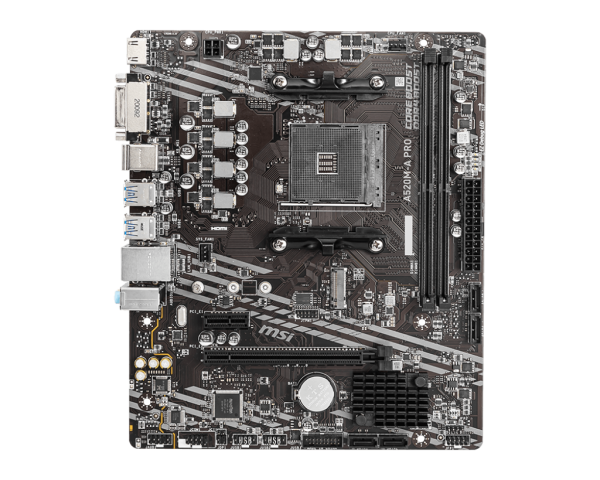

MAIN MSI A520M-A PRO (AMD A520/ SOCKET AM4/ M-ATX/ 2 KHE RAM)

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

A520M-A PRO

CPU hỗ trợ

AMD

Chipset

A520

RAM hỗ trợ

2 x DIMM SLOTS, tối đa 64GB, DDR4 MEMORY
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode

Khe cắm mở rộng

1 x PCI-E X16
Gen3 x PCI-E GEN
1 x PCI-E X1

Ổ cứng hỗ trợ

4 x SATAIII
1 x M.2 SLOT
0/1/10 x RAID

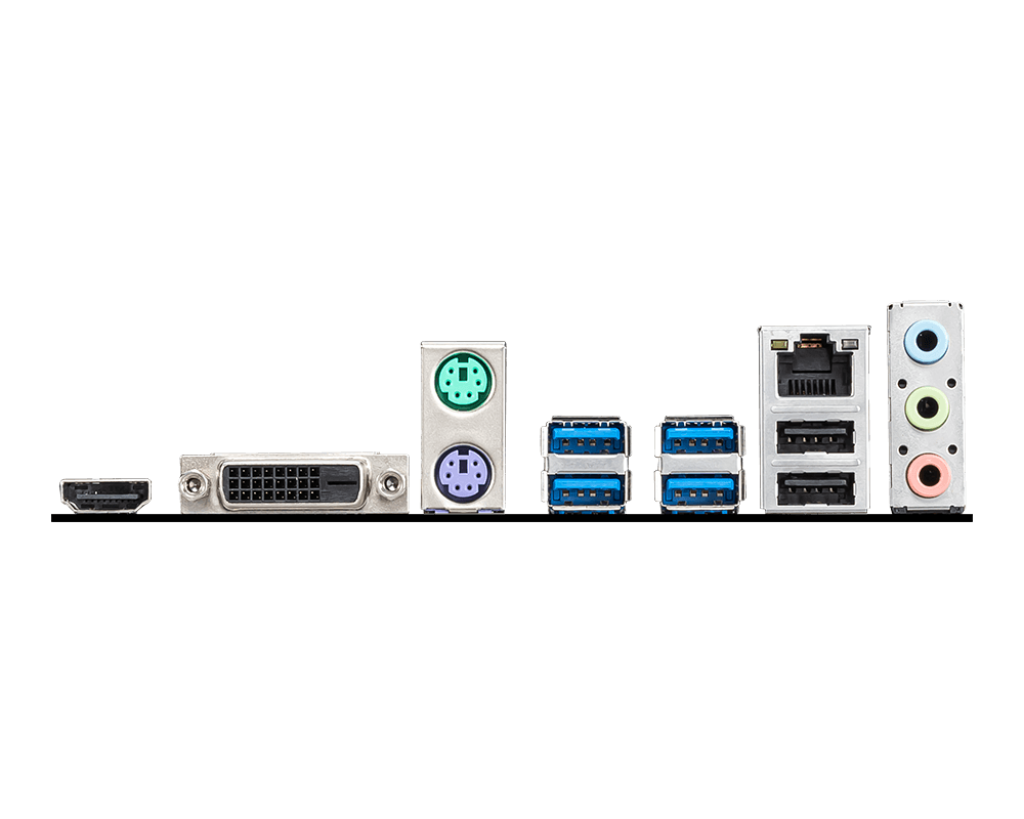

Cổng kết nối (Internal)

2(Gen 1, Type A) x USB 3.2 PORTS (FRONT)
4(Gen 1, Type A) x USB 3.2 PORTS (REAR)
4 x USB 2.0 PORTS (FRONT)
2(Type A) x USB 2.0 PORTS (REAR)
1 x SERIAL PORTS(FRONT)
3 HD audio connectors x AUDIO PORTS (REAR)
1 x DVI-D
1 x HDMI
12 x DIRECTX

LAN / Wireless

1x Realtek® RTL8111H Gigabit LAN

Kích cỡ

MATX
