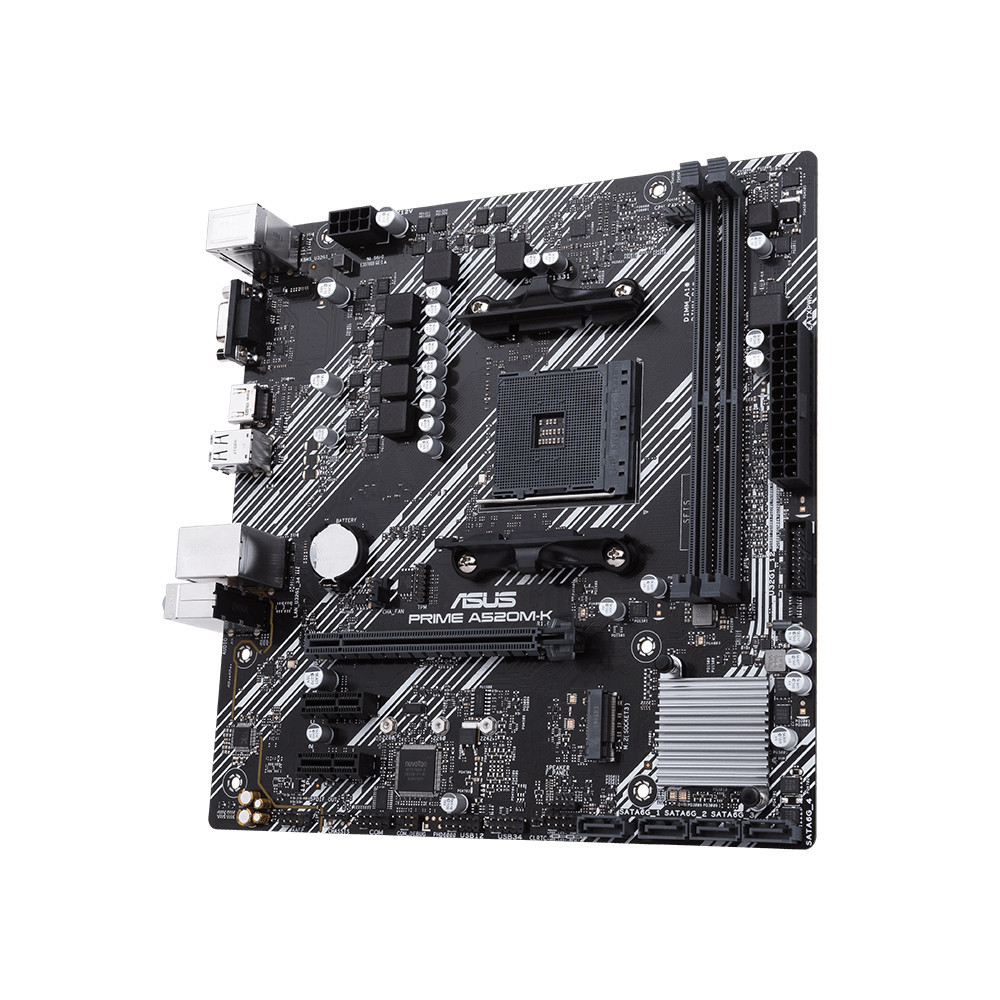

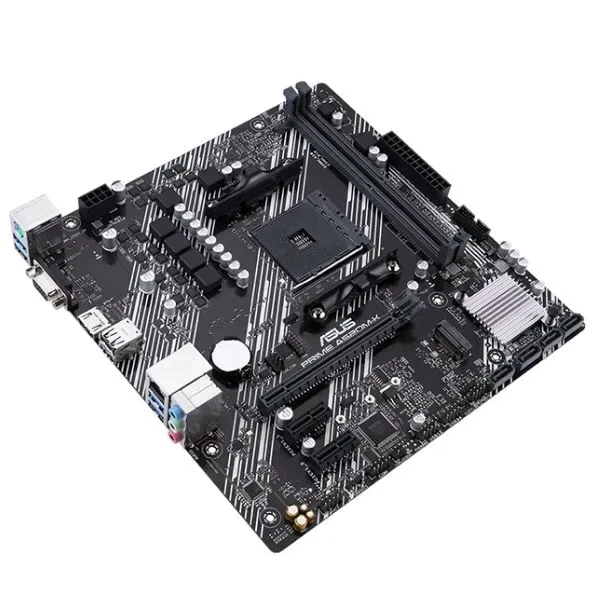

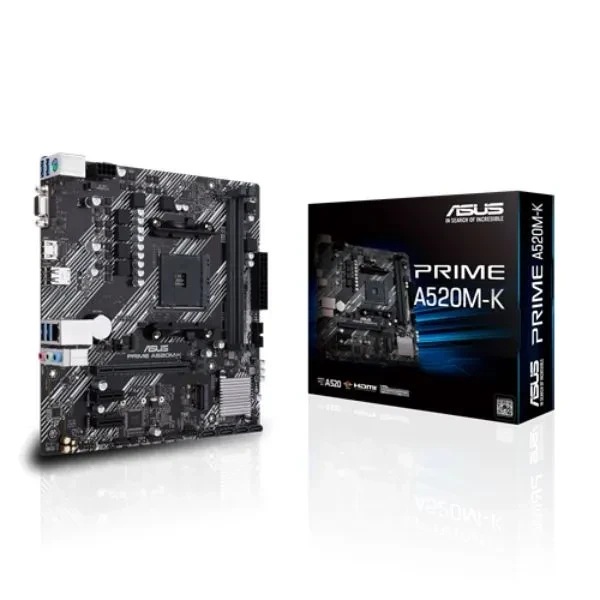

MAIN ASUS PRIME A520M-K (AMD A520/ Socket AM4/ M-ATX/ 2 khe ram)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

PRIME A520M-K

CPU hỗ trợ

AMD

Chipset

AMD A520

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4 4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)

3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000

2933/2800/2666/2400/2133 MHz Un-buffered Memory

Khe cắm mở rộng

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors , AMD A520 Chipset ,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode)

Ổ cứng hỗ trợ

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : , AMD A520 Chipset : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 and SATA mode), Supports a total of 1 M.2 slot and 4 SATA 6Gb/s ports ,4 x SATA 6Gb/s ports,,Support Raid 0, 1, 10

Cổng kết nối (Internal)

1 x USB 3.2 Gen 1 port(up to 5Gbps) supporting 2 additional USB 3.2 Gen 1 ports,1 x SPI TPM port,1 x M.2 3 socket,1 x Chassis Fan connector,1 x M.2 3 socket with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode),1 x 8-pin EATX 12V power connector,1 x Speaker header,1 x System panel connector,4 x SATA 6Gb/s connectors,1 x COM port header,2 x USB 2.0 headers supporting 4 additional USB 2.0 ports,1 x CPU Fan connector,1 x S/PDIF out,1 x 24-pin EATX power connector,1 x Audio jack connector (AAFP),1 x Clear CMOS connector

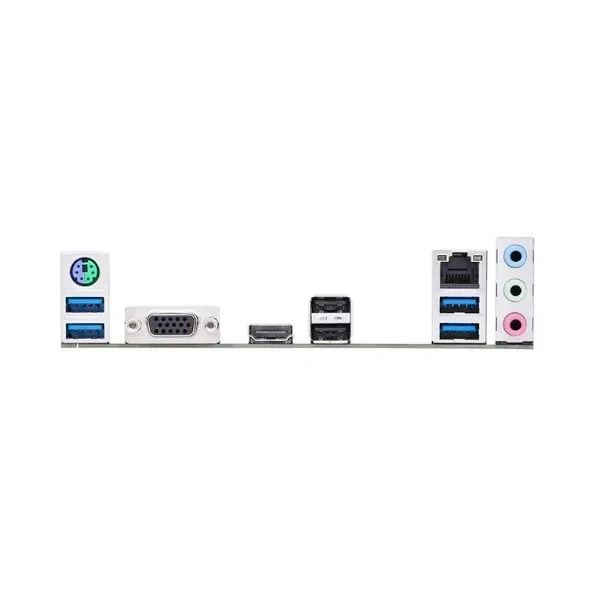

Cổng kết nối (Back Panel)

4 x USB 3.1 Gen 1 (blue) Type-A,4 x USB 3.1 Gen 1 (blue),1 x D-Sub,1 x LAN (RJ45) port,2 x USB 2.0,3 x Audio Jack,1 PS/2 Keyboard/Mouse Combo Port,1 x HDMI

LAN / Wireless

Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard

Kích cỡ

8.9 inches x 8.7 inches ( 22.6 cm x 22.1 cm ),mATX
